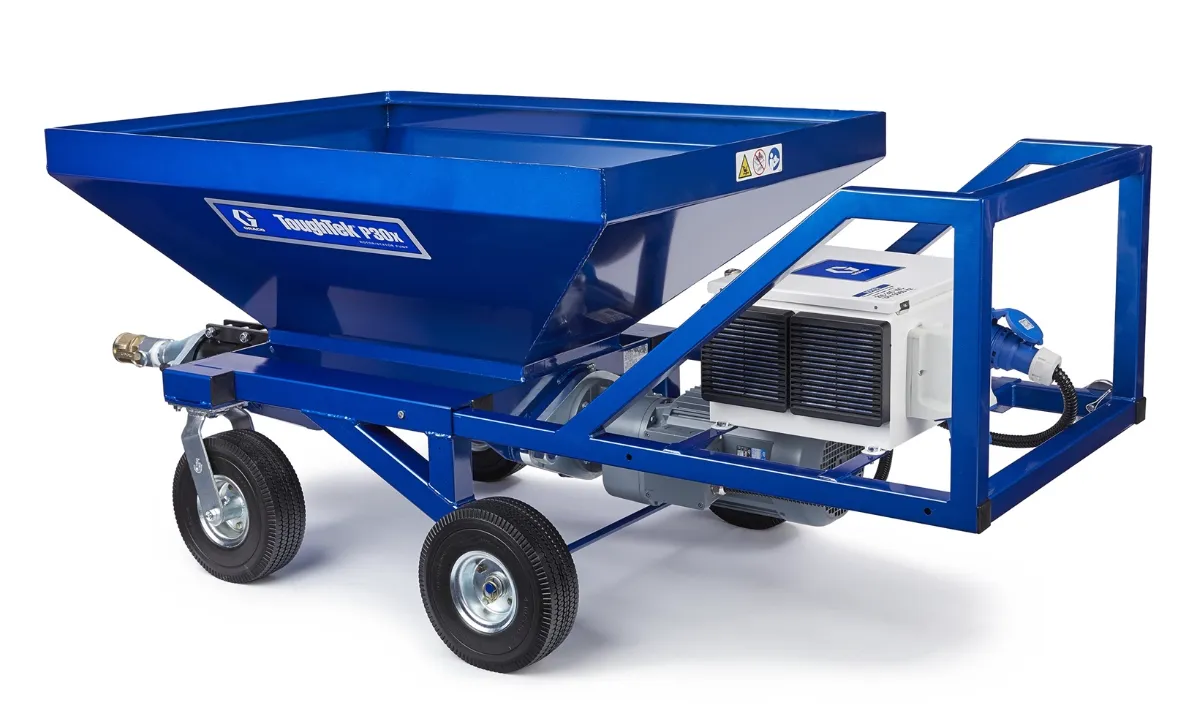

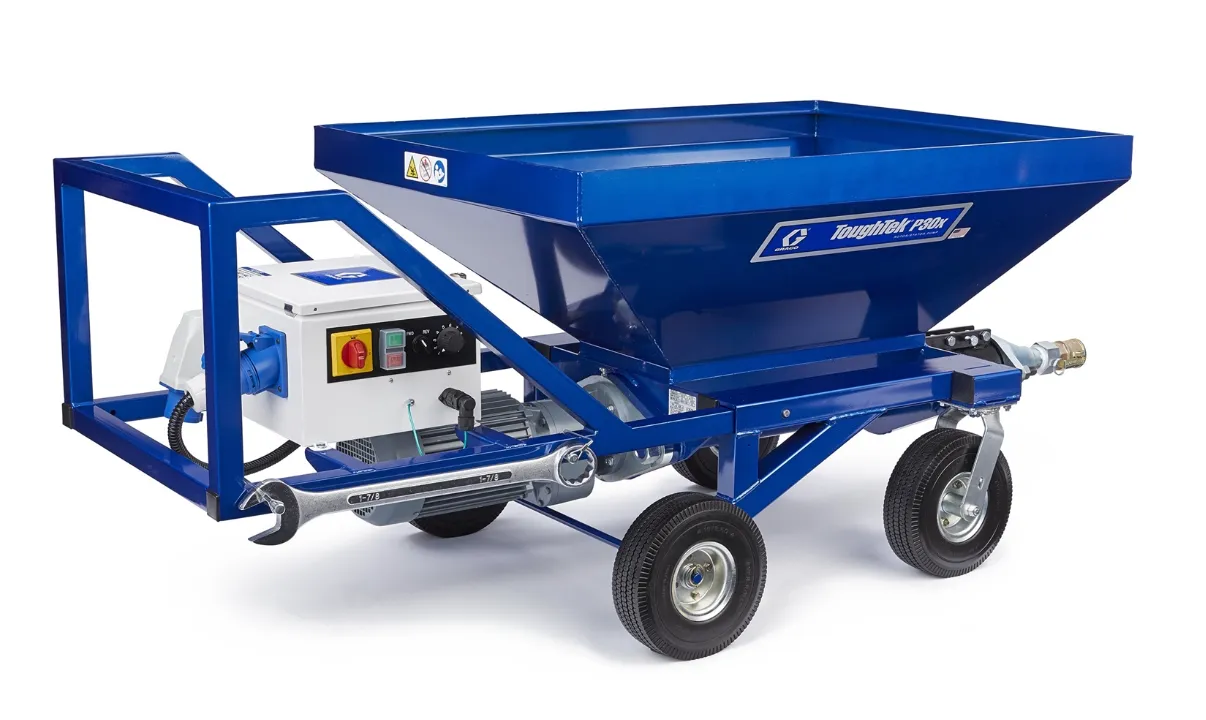

Name: Graco 25M041 ToughTek P30X High Torque System
SKU: 503922

The ToughTek P30X-HT is perfect for contractors who are looking for versatility and features for medium to large stucco and EIFS projects. The P30X-HT has a large 60-gallon (227 liter) hopper and offers superior performance for a variety of stucco and EIFS materials.

For medium to large projects

Easy to use, easy to move
Variable pump output lets you adjust material flow
Optional remote control operation
Flow rate: 10 gpm (38 lpm)
Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
Pumping distance: 100 feet (30 m)
Pumping height: 60 feet (18 m)
Reversible pump direction
Hopper capacity: 60 Gal (227.1 L)
Power requirements: 230V, 30A, 1-ph

Specifications:

Compatible Material	Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in)	3.8
Fluid Outlet Size (in)	1.5
Fluid Outlet Thread Gender	Male
Fluid Outlet Thread Type	NPT
Maximum Flow Rate (GPM)	9.8
Maximum Working Pressure (MPa)	2.1
Maximum Working Pressure (psi)	300
Model	ToughTek
Motor Type	Electric
Overall Height (ft)	2.58
Overall Height (in)	31
Overall Length (ft)	6.58
Overall Length (in)	79
Overall Width (ft)	2.83
Overall Width (in)	34
Power Rating (HP)	7.5
Power Rating (W)	5593
Power Rating (kW)	5.59
Series	P30X HT
Type	Electric Rotor Stator Pump
Weight (lb)	440
Wetted Parts	Tool Steel, Painted Steel, Plated Steel, PORON
